Morph filters

The morphFilter style gives a node view-transition behavior: when its key changes, the node's previous appearance is frozen and blended into the new content by a two-input shader, such as a crossfade or a wipe. React swaps the content freely in the same commit; the blend runs on the Bevy side.

#Usage

function Gallery({ page }: { page: number }) {
  return (
    <node style={{ morphFilter: { key: page, name: "crossfade" } }}>
      <Page index={page} />
    </node>
  );
}

Changing page re-renders the content and, in the same frame, starts a 300 ms crossfade from the old page to the new one.

#The key

• key is a string or a number. Only a change of key starts a morph: re-renders, content changes and changes to name or params alone do not.
• What is frozen is the node's appearance on the last frame before the key changed, including its whole subtree.
• The first mount never animates; the key is adopted silently. The same holds for a key change in the same commit as the mount: the node needs at least one rendered frame to freeze.
• A key change during a morph freezes the in-flight blend, as it looks at that moment, and starts again from there. Interruptions stay smooth.
• Removing morphFilter stops a running morph at once and shows the live content.
• With an unknown name, or a regular filter's name, the key is adopted without animating and a morphFilterUnknown or morphFilterParams devtools warning is reported.

#Timing

A morph eases over 300 ms with easeInOut by default, without any transition. transition: { morphFilter } replaces that timing:

<node
  style={{
    morphFilter: { key: tab, name: "linearWipe", params: { softness: 24 } },
    transition: { morphFilter: { duration: 600, easing: "easeInOut" } },
  }}
/>

The override is a complete timing: an omitted easing falls back to linear, the general transition default, not to the morph's easeInOut. delay holds the old appearance before the blend starts. See Style transitions for the timing options.

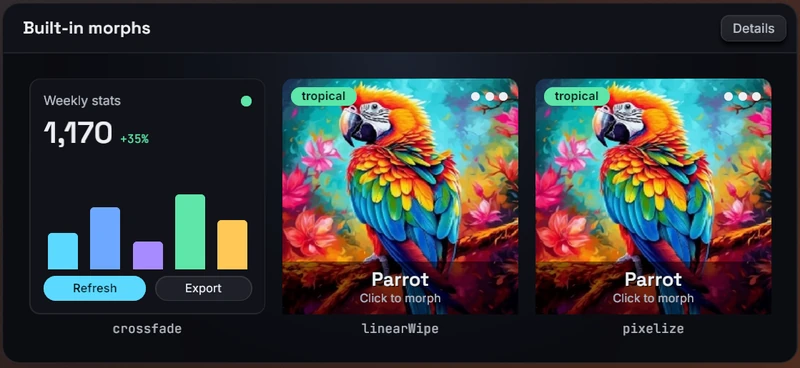

#Built-in morphs

#crossfade

A cross-dissolve, staggered by a smooth noise pattern so that blob-shaped regions change before others.

#linearWipe

The new content sweeps in across the old along a direction.

#pixelize

Both images break into a mosaic whose cells grow until the middle of the morph and shrink again, crossfading underneath.

Custom morphs, written in WGSL, are used the same way; see Custom filters.

#Layout during a morph

The frozen image is attached to the node's box. If the node moves or scrolls during the morph, both images move together. If its size changes, the old image is stretched to the new size, so keep the size stable across a key change (a fixed-size slot, or the same layout for both contents) unless a stretch looks right.

#Morphing from and to nothing

An empty node is a valid source and target: a mounted node that paints nothing freezes as transparent pixels. This makes enter and exit animations possible with a carrier node that stays mounted around the content:

import { type ReactNode, useEffect, useState } from "react";

function FadeIn({ show, children }: { show: boolean; children: ReactNode }) {
  const [mounted, setMounted] = useState(false);
  const [armed, setArmed] = useState(false);
  useEffect(() => {
    if (show) {
      setMounted(true);
      // Let the empty carrier render one frame first.
      const t = setTimeout(() => setArmed(true), 50);
      return () => clearTimeout(t);
    }
    setArmed(false);
    // Keep the carrier until the 300 ms blend is over.
    const t = setTimeout(() => setMounted(false), 300);
    return () => clearTimeout(t);
  }, [show]);
  if (!mounted) return null;
  return (
    <node
      style={{
        morphFilter: { key: armed ? "on" : "off", name: "crossfade" },
      }}
    >
      {armed && children}
    </node>
  );
}

• Toggle the content in the same commit as the key.
• On entry, the carrier must have rendered at least one frame empty before the key changes. A useEffect alone is too early; a short timeout is enough.
• On exit, keep the carrier mounted until the blend has finished.

#Combining with other styles

• A filter on the same node applies on top of the blend: the chain filters what the morph produces.
• opacity fades the blended result, and a transform3d transforms it.

#Animated params

Every param accepts an inline { animated } binding to a shared value, in the param's units (pixels, degrees), in the base style only. The blend's own progress is driven by the morph and cannot be bound. Static param changes apply immediately and never start a morph.

#Cost

morphFilter promotes the node to a composited layer, even while no morph is running, so its last appearance is always cached and ready to freeze. During a morph, the frozen image and the blend take two more textures of the node's size and one blend pass runs per frame; the textures are released when the morph ends.

The built-in morphs are compiled at startup. If you turn that off with precompile_filters, a morph's shader is compiled as soon as a node declares it; a key change that arrives before compilation finishes draws nothing for a few frames, a visible blink.

#Limits

• A size change across the key change stretches the old image.
• A node that mounts and changes its key in the same commit does not animate.
• Under a transform3d, a morph-only layer is sampled without mipmaps, so a strongly tilted or shrunk blend can shimmer.
• The layer limits apply: content painted outside the node's border box is cut off, and inside a <surface> the content switches without a blend.

See morphFilter in the style reference, and crossfade, linearWipe and pixelize in the filter reference.
