<surface>

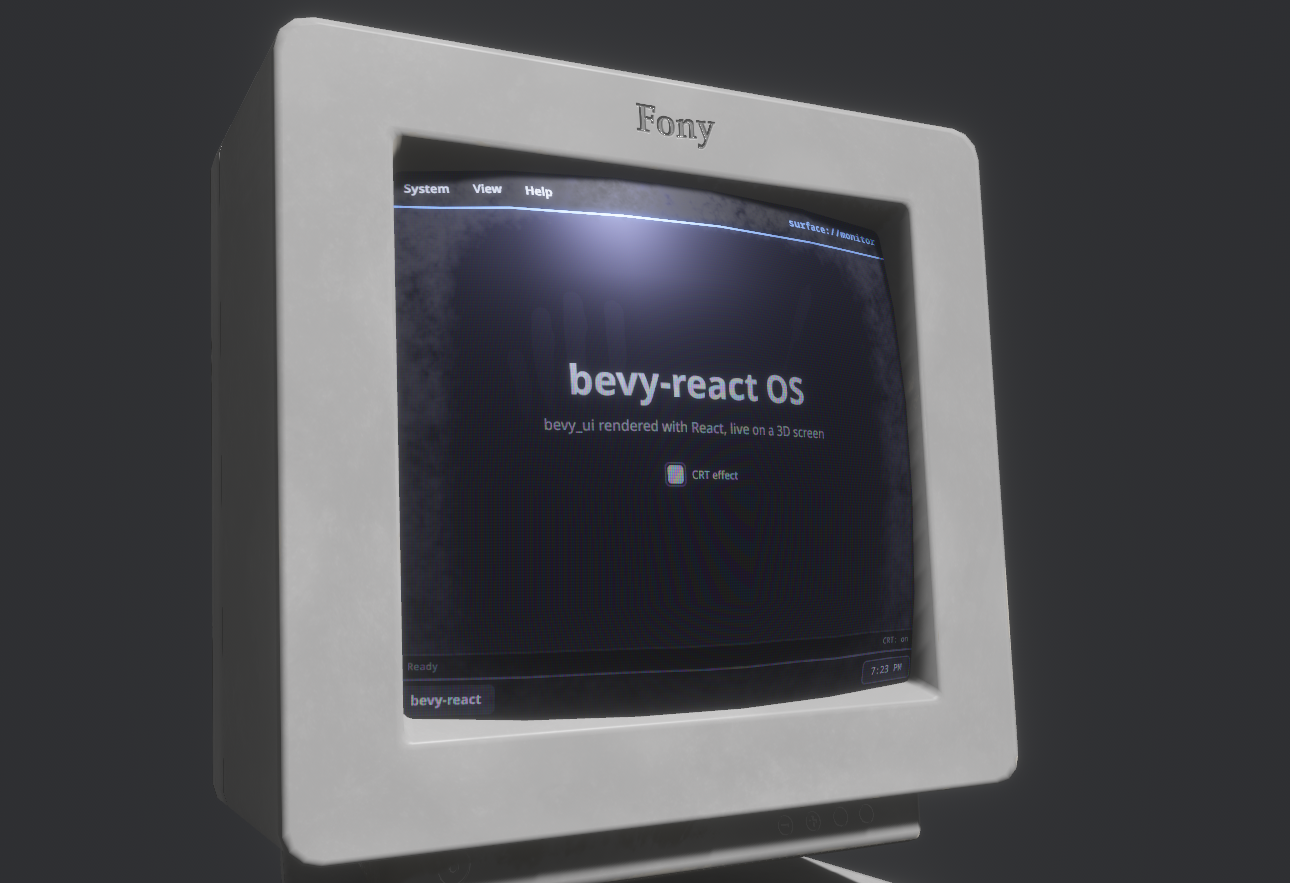

<surface> renders a React subtree into an offscreen texture instead of onto the screen. Your Bevy app puts that texture on any material: an in-world monitor, a control panel, a hologram with your own shader on top. It is the inverse of <portal>, which shows a camera's texture inside the UI. Tag the mesh that displays the texture with SurfacePointer and the UI on it is clickable in 3D.

#Usage

function Monitor() {
  const [count, setCount] = useState(0);
  return (
    <surface target="monitor" style={{ backgroundColor: "#1a1b26" }}>
      <button onClick={() => setCount((n) => n + 1)}>
        <text>{`Clicked ${count} times`}</text>
      </button>
    </surface>
  );
}

use bevy::prelude::*;
use bevy_react::surface::{SurfacePointer, SurfaceSpec, Surfaces};

fn setup(
    mut commands: Commands,
    mut surfaces: ResMut<Surfaces>,
    mut images: ResMut<Assets<Image>>,
    mut meshes: ResMut<Assets<Mesh>>,
    mut materials: ResMut<Assets<StandardMaterial>>,
) {
    let screen = surfaces.create(
        &mut images,
        "monitor",
        SurfaceSpec {
            size: UVec2::new(800, 600),
            ..default()
        },
    );
    commands.spawn((
        Mesh3d(meshes.add(Rectangle::new(4.0, 3.0))),
        MeshMaterial3d(materials.add(StandardMaterial {
            base_color_texture: Some(screen),
            unlit: true,
            ..default()
        })),
        SurfacePointer::new("monitor"),
    ));
}

<surface> comes from the surface cargo feature, which is on by default and adds SurfacePlugin to ReactPlugins. Without it, a <surface> mounts as a plain node and reports a featureMissing warning (see Cargo features).

#Surfaces

Surfaces::create(&mut images, name, spec) allocates a texture, registers it under name and returns its Handle<Image> for your materials. bevy-react spawns a UI camera for each surface that renders the matching <surface> subtree into the texture, before the main camera draws, so the texture is never a frame behind. Creating an existing name again replaces the surface.

SurfaceSpec configures it:

get(name) returns the texture handle, and invalidate, set_mode and remove work as on render targets. remove(name) despawns the surface's camera and hides its <surface> subtrees until the name is created again.

On the React side, target names the surface. A <surface> whose name isn't registered yet renders nothing, and appears as soon as the app creates it. Changing target moves the subtree to another surface.

#Layout

• The subtree lays out in the texture's pixel space: one logical pixel is one texture pixel, whatever the window's scale factor.
• The <surface> element fills the texture by default (width and height "100%"). Its style overrides that and styles the root like a node.
• The <surface> takes no space where you write it in the React tree. Put it anywhere, for example beside the screen UI that controls it; unmounting it or an ancestor removes it.
• It is a UI root of its own, like <root>. Layout, overflow clipping, layoutRounding and shared-element pairing don't cross its boundary.
• The <surface> element itself takes only target, style, name and key: no pointer handlers or hover styles. Put those on its children.

#Clicking in the world

SurfacePointer::new(name) on the entity with the mesh makes the UI on it interactive. bevy-react casts a ray from the active window camera through the cursor, finds the nearest SurfacePointer mesh, reads the texture coordinate at the hit, and moves a virtual pointer to that pixel of the surface.

• Children get onClick, the onPointer* handlers, hoverStyle and pressStyle, and the cursor style sets the OS cursor, as on screen.
• The mesh needs UVs, with (0, 0) at the texture's top-left. If your material maps the surface to the second UV set (base_color_channel: UvChannel::Uv1), match it with SurfacePointer::new(name).with_uv_channel(UvChannel::Uv1) so clicks land on the right pixel.
• Several meshes can display and pick the same surface.
• Only SurfacePointer meshes are ray-cast: another mesh in front of the screen doesn't block clicks.

#Render modes

• RenderMode::Live (the default): the UI renders every frame while at least one SurfacePointer mesh naming the surface is visible to a camera. When every tagged mesh is culled, it renders nothing. A surface with no tagged mesh renders every frame, since bevy-react can't tell which materials use it, so tag every mesh that shows a surface.
• RenderMode::Snapshot: the UI renders once when the surface is created, when you call invalidate(name) and when its mode changes, then the texture keeps that frame. Call invalidate after the UI changes; good for static panels.

#Limits

• Composited-layer styles have no effect inside a surface: opacity on a node with children, filter, backdropFilter, transform3d, morphFilter and cache render as if unset, with a layerCamera warning. See Layers.
• The mouse wheel doesn't reach surface UI: no wheel scrolling and no onWheel inside a surface.
• A live surface without a tagged mesh renders every frame, visible or not.
• Textures are capped at 4096 pixels per side.

See <surface> in the element reference.
