Style transitions

The transition style makes a style change ease instead of snap. You list the channels that should animate (transform, opacity, size, layout and so on), each with its own timing curve or spring. Whatever changes the style, whether a re-render with new values or a hover, press or focus state taking effect, the node then glides to the new value. The easing runs on the Bevy side every frame, and React renders only the end state.

#Usage

<button
  style={{
    backgroundColor: "#7aa2f7",
    transform: { scale: 1 },
    transition: {
      transform: { duration: 120, easing: "easeOut" },
      backgroundColor: { duration: 200 },
    },
  }}
  hoverStyle={{ backgroundColor: "#89b4fa" }}
  pressStyle={{ transform: { scale: 0.92 } }}
>
  <text>Press me</text>
</button>

A change from React state eases the same way. This knob springs across its track:

<node
  style={{
    transform: { translateX: on ? 36 : 0 },
    transition: { transform: { stiffness: 180, damping: 14 } },
  }}
/>

#Timing

Each channel takes one spec. A spec is a timing curve, or a spring when stiffness or damping is present:

A Time is a number of milliseconds or a string with a unit ("200ms", "0.2s"). The default easing is "linear", not CSS's ease. A spring has no duration: it runs until it comes to rest, and a low damping overshoots the target before settling.

#What triggers a transition

A listed channel eases whenever the value it covers changes in the style in effect:

• A re-render that changes the value.
• A hoverStyle, pressStyle or focusStyle starting or ending. The transition value is read from the style in effect too, so a transition inside hoverStyle times the ease into the hover state and the base one times the ease back out.
• A new target while a transition is running restarts the ease from the current on-screen value, so interrupted transitions never jump.

Rules that are easy to trip over:

• Explicit channels only. There is no all shorthand and no fallback: a channel without an entry snaps.
• No enter animation. A node's first style is adopted as it is, even with a transition. To animate a node in, mount it with the start value and switch to the end value once it has been on screen for a frame (for example after a short setTimeout). A switch from a bare useEffect can reach Bevy in the same frame as the mount and snap. Unmounting is immediate. A shared value is the more robust tool for entrances.
• Set the value in every state. A channel eases between two values. If the base style leaves a property out and a state style sets it, the way back snaps, and the next change can snap too. Put the resting value (transform: { scale: 1 }, opacity: 1) in the base style.
• Bindings win. A property driven by an { animated } binding ignores its transition. For the group channels (transform, transform3d, filter, backdropFilter, the gradients), any binding in the group switches off the whole channel.

#Channels

How values move:

• Lengths (translations, sizes, corner radii) ease between values of the same unit: px to px, % to %, vw to vw. A change of unit, or to or from "auto", snaps.
• rotate eases numerically, so 350 to 10 degrees turns the long way through 180.
• Unsetting borderRadius eases to square corners, and a corner that changes unit snaps on its own while the others ease. The radius is part of layout, so every eased frame is a relayout.
• morphFilter is the one channel that animates without an entry: a key change eases over 300 ms with "easeInOut". An entry only changes that timing.
• Unsetting filter, backdropFilter, transform3d or a gradient snaps. The pages linked above show how to keep an identity value in the base style so removal can ease.

Properties without a channel snap: text color, borderColor, minWidth/minHeight, positions (left, top, …), padding, margin, gap and the rest. A layout transition eases the moves and resizes they cause, and text color, border color and gap can be driven by an animated value instead. SVG shapes ease their numeric attributes with a transition prop of their own (see <svg>).

#Size

transition: { size } eases width, height, maxWidth and maxHeight through real layout. Every frame lays the tree out again at the eased size, so the content around the node re-flows with it, as in an accordion:

<node
  style={{
    maxHeight: open ? 240 : 0,
    overflowY: "clip",
    transition: { size: { duration: 300, easing: "easeInOut" } },
  }}
>
  {children}
</node>

Both ends need a value in the same unit. An "auto" height cannot ease, so ease maxHeight to a fixed value tall enough for the content instead. minWidth and minHeight are not part of the channel.

Under Bevy's layout rounding a size eased through real layout grows in whole pixel steps, and everything it pushes around hops with it. Set layoutRounding: false on the parent that lays out the animated node and its neighbours for a smooth glide (see Layout rounding).

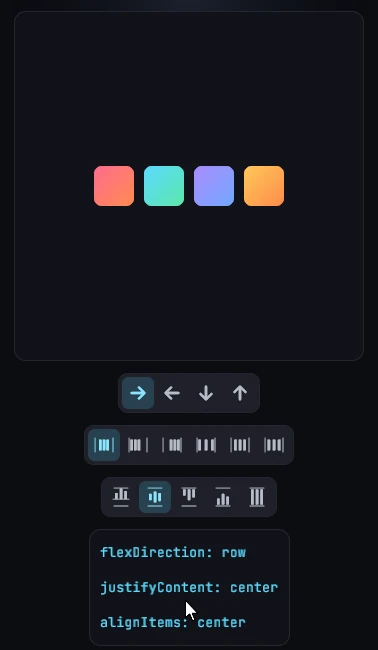

#Layout transitions

transition: { layout } eases a node from its previous laid-out rect to the new one whenever layout moves or resizes it, whatever the cause: a sibling inserted, removed or reordered, a sibling or the parent resizing, a re-wrap, a changed flex or grid property, a window resize.

<node style={{ flexDirection: "row", gap: 8 }}>
  {order.map((id) => (
    <node
      key={id}
      style={{
        width: 40,
        height: 40,
        transition: { layout: { duration: 400, easing: "easeInOut" } },
      }}
    />
  ))}
</node>

• The real layout updates at once. The node is drawn with a translation and a scale from its old rect that decays to nothing (the FLIP technique), so no frame relayouts and the cost is small.
• Children move with the node but are not scaled. A resizing node eases its own box (background, border, shadow) while its children sit at their final positions, crisp. A <text> or <image> node scales its own content.
• Only nodes with the channel ease. Siblings and the parent snap to the new layout unless they have their own layout entry, so give it to every item of a list whose order changes.
• Pointer events follow the eased position.
• The first layout is adopted silently, and an unmounted node disappears at once. A node that goes from display: "none" (or zero size) to visible grows in place from its final position; one that collapses to zero size snaps.
• Moves under half a physical pixel do not start an ease.
• Scrolling an ancestor and the node's own transform are not layout changes.
• An { animated } binding on one of the node's layout fields (width, left, …) owns its rect, and the layout channel stays out of its way.

#Layout and size together

layout fakes the node's own box; it never pushes its neighbours. A container whose size change must re-flow what is around it uses size (with explicit sizes), and its children use layout to glide to their new slots. The two channels also compose on one node: the size eases through real layout, and a jump the size change does not explain, such as a flipped flexDirection, still glides by translation.

#Scroll

transition: { scroll } on a scroll container (overflowX or overflowY set to "scroll") eases its scroll offset toward a new target instead of jumping: a controlled scrollTop or scrollLeft change, or accumulated mouse wheel input. It covers both axes. Dragging the scrollbar thumb or clicking its track bypasses the ease. Do not also feed onScroll back into the same controlled axis, or the round trip fights the ease: drive the target from your own state and read onScroll into a separate one. See Overflow.

#Limits

• Channels group properties (one transform spec for every transform field), there is no all shorthand, and there are four easing curves (no cubic Bézier).
• No enter or exit transitions: mounting adopts, unmounting is instant.
• A layout transition on a node whose rect is moved every frame by something else, such as an ancestor's size transition or a window being resized by dragging, keeps restarting: the node lags behind and catches up when the motion stops.
• size and borderRadius relayout on every eased frame. Prefer transform and layout for motion that does not need to push other content.

See transition in the style reference.
