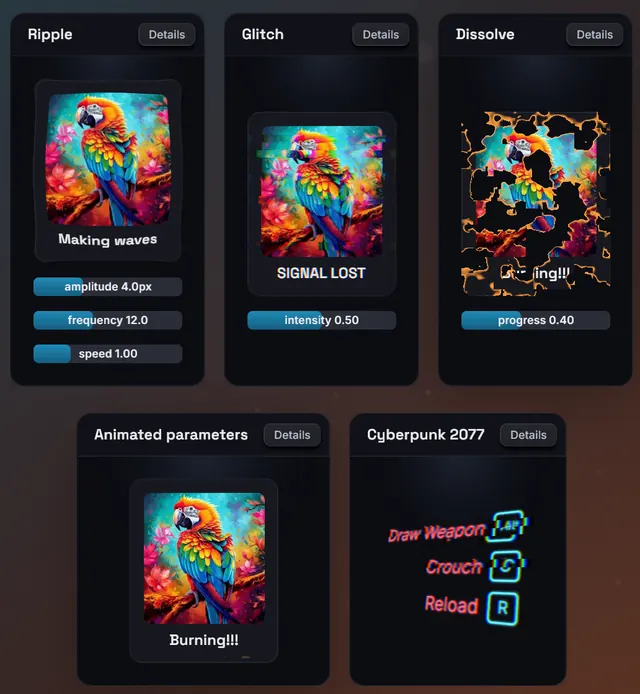

Custom filters

A custom filter is a Rust params struct plus a WGSL fragment shader. Once registered, it is used by name exactly like a built-in: regular filters in the filter and backdropFilter chains, morph filters in morphFilter. The params struct is the single source of truth for the TSX side: the generated bevy.ts types the filter's name and params.

#Usage

Declare the params struct, register it, regenerate bevy.ts, and use the name from a style:

<node
  style={{
    padding: 16,
    filter: { name: "scanlines", params: { spacing: 3, strength: 0.4 } },
  }}
>
  <text>INCOMING TRANSMISSION</text>
</node>

use bevy::prelude::*;
use bevy_react::prelude::*;
use bevy_react::protocol::units::Length;

/// Packs as params[0].x = spacing (px), params[0].y = strength.
#[react_filter(shader = "shaders/scanlines.wgsl")]
struct Scanlines {
    /// Distance between dark rows.
    #[serde(default = "default_spacing")]
    spacing: Length,
    /// 0 = no lines, 1 = black lines.
    #[serde(default)]
    strength: f32,
}

fn default_spacing() -> Length {
    Length::Px(4.0)
}

pub fn register_bindings(app: &mut App) {
    app.add_react_filter::<Scanlines>();
}

The shader lives in your assets folder (assets/shaders/scanlines.wgsl):

#import bevy_react::filter::{FullscreenVertexOutput, sample_source, uniforms}

@fragment
fn fragment(in: FullscreenVertexOutput) -> @location(0) vec4<f32> {
    let spacing = max(uniforms.params[0].x, 1.0);
    let strength = uniforms.params[0].y;
    let row = in.uv.y * uniforms.resolution.y;
    let dark = step(0.5, fract(row / spacing)) * strength;
    let c = sample_source(in.uv);
    // Scaling rgb by a factor is valid on premultiplied color.
    return vec4<f32>(c.rgb * (1.0 - dark), c.a);
}

Call register_bindings from both your app (a plugin's build) and your bindings exporter, then regenerate bevy.ts. A filter registered only in the running app works at runtime but is missing from the typing, and one registered only in the exporter type-checks but warns filterUnknown at runtime. See TypeScript codegen for the exporter setup.

#The params struct

#[react_filter] takes a struct with named fields and these arguments:

Each field is one param, named in TSX exactly as the field is written (no case conversion). Supported field types:

Angle and Length come from bevy_react::protocol::units, FilterColor from bevy_react::filters. Any other field type is a compile error.

• Packing. Fields fill uniforms.params (8 vec4s) in declaration order, component by component. A multi-component field that would cross a vec4 boundary starts at the next vec4 instead, leaving the skipped components zero. A struct that packs into more than 8 vec4s compiles but every use is rejected with a filterParams warning.
• Defaults. Every param is optional in TSX, so give every field a #[serde(default)] or #[serde(default = "…")]. Omitting a field that has no default rejects the whole entry with a filterParams warning, as do unknown param keys and values of the wrong type.
• Units. A Length accepts px only; "50%" or "2vw" rejects the entry. It arrives in the shader already multiplied by the display's scale factor, matching resolution. A plain f32 arrives unscaled.
• Built-in names. A custom filter registered under a built-in's name replaces the built-in, in the app and in the generated typing alike.

#Writing the shader

The shader imports the prelude with #import bevy_react::filter::{…} and names its entry point fragment (filter is a reserved word in WGSL). It runs once per pixel of the node's capture: in.uv spans the image 0..1, y down, and whatever the function returns is written as-is, alpha included.

The prelude provides:

Sampling outside 0..1 returns the edge pixel. textureSample needs uniform control flow, so when you branch on per-pixel data before sampling, use the _lod variants.

#Premultiplied alpha

Every input is premultiplied color, and the output must be premultiplied again:

• Color operations (contrast, hue shifts, curves) are defined on straight alpha: unpremultiply the sample, change rgb, premultiply the result. Scaling rgb by a factor, as in the example above, is the exception: it gives the same result either way.
• Resampling (blurs, distortions, any weighted average of neighboring pixels) must work on the premultiplied samples directly. Unpremultiplying first bleeds the hidden color of transparent pixels into visible fringes at the edges.
• A fully transparent pixel is vec4(0.0). A FilterColor param is straight alpha: multiply its rgb by its a before writing it out.

#Outset

By default the filter only sees and paints the node's border box. An effect that reaches outside it (a glow, a displacement) declares how far with outset, in logical px:

#[react_filter(shader = "shaders/ripple.wgsl", outset = 12.0, time = true)]
struct Ripple {
    #[serde(default)]
    amplitude: f32,
}

The image is then inflated by a margin on every side, and uv, resolution and the sampling helpers cover the inflated image. The margin is at least the outset, but it can be larger: the outsets of every entry in the chain add up and the total is rounded up. Read the actual margin from uniforms.content_inset, or anchor geometry to the node with content_uv(). The margin starts transparent.

The outset argument is a constant. It cannot depend on a param value; size it for the largest value your UI uses, or the effect is cut off at the margin.

#Time-driven filters

With time = true the pass re-runs every frame and uniforms.time advances, so the filter animates on its own. Only the filter re-runs: the node's content is captured once and reused while it does not change. Without time = true, the pass re-runs only when the content or the params change, so animate it from React state, a transition or an { animated } binding instead.

uniforms.time is an f32 that grows without bound. Avoid hashes such as fract(sin(x) * 43758.5) seeded from it: they lose precision after a few minutes of uptime. An integer hash of a quantized time stays exact.

#Custom morph filters

A morph filter blends a node's frozen previous appearance into its live content when the morphFilter key changes (see Morph filters for the style side). A custom one uses #[react_morph_filter] and add_react_morph_filter:

<node
  style={{
    morphFilter: { key: page, name: "windowslice", params: { count: 14 } },
  }}
>
  {pages[page]}
</node>

#[react_morph_filter(shader = "shaders/morphs/windowslice.wgsl")]
struct Windowslice {
    /// Number of blinds.
    #[serde(default = "default_count")]
    count: f32,
    /// Soft lead of the sweep, as a fraction of the width.
    #[serde(default = "default_smoothness")]
    smoothness: f32,
}

app.add_react_morph_filter::<Windowslice>();

The struct follows the same rules as a regular filter's, but the macro takes only shader and name: a morph never paints outside the node and already re-runs every frame while it plays. The shader uses three prelude functions:

• morph_progress(): the blend factor, 0 to 1, already eased by the morph's timing.
• morph_sample_from(uv): the frozen previous appearance.
• morph_sample_to(uv): the live content.

morph_sample_from_lod and morph_sample_to_lod are the explicit-LOD variants. Both images are premultiplied; mix them directly.

#import bevy_react::filter::{
    FullscreenVertexOutput,
    morph_progress,
    morph_sample_from,
    morph_sample_to,
    uniforms,
}

@fragment
fn fragment(in: FullscreenVertexOutput) -> @location(0) vec4<f32> {
    let progress = morph_progress();
    if progress <= 0.0 { return morph_sample_from(in.uv); }
    if progress >= 1.0 { return morph_sample_to(in.uv); }

    let count = uniforms.params[0].x;
    let smoothness = max(uniforms.params[0].y, 1e-4);
    let x = in.uv.x - progress * (1.0 + smoothness);
    let edge = smoothstep(-smoothness, 0.0, x);
    let s = step(edge, fract(count * in.uv.x));
    return mix(morph_sample_from(in.uv), morph_sample_to(in.uv), s);
}

Rules for morph shaders:

• Identity contract. At progress 1 the output must be exactly morph_sample_to(uv). The morph renders one final frame at exactly 1 before it ends, and any difference flashes on that frame. Returning exactly morph_sample_from(uv) at 0 keeps the start seamless the same way; the early returns above handle both ends.
• One pass, at most 6 params vec4s. The last two of the 8 are reserved for the engine. A morph over the cap, or a hand-written one resolving to several passes, is rejected with a morphFilterParams warning and the change snaps.
• Both images are sampled at the same uv: the frozen image is stretched onto the node's current box, so a size change across the key change stretches the old appearance.

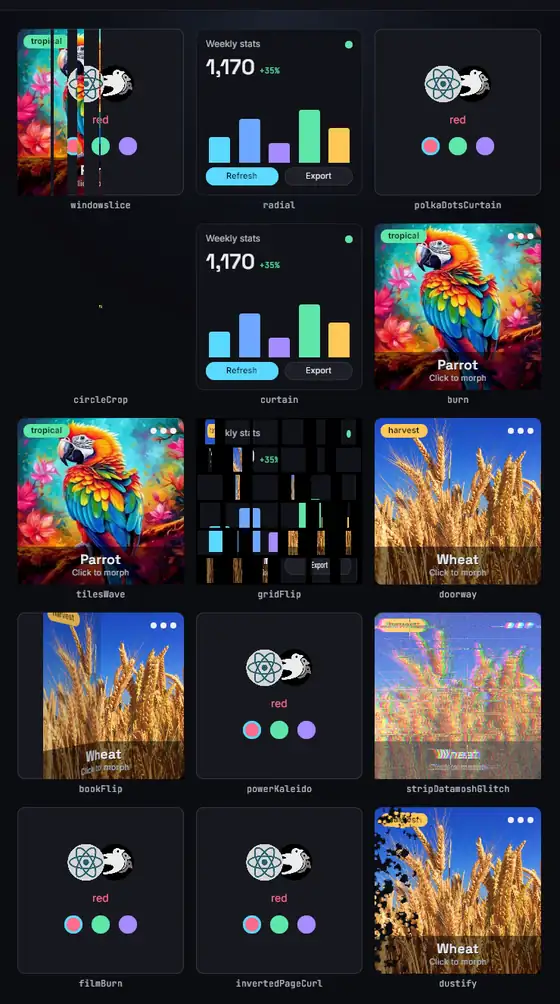

The demos app ports a pack of gl-transitions transitions this way; their shaders, in examples/assets/shaders/morphs/, are worked examples, registered in examples/demos/filters.rs.

#Two families

Regular filters and morph filters are separate, in the typing and at runtime:

• #[react_filter] + add_react_filter names land in the generated BevyFilters interface and are accepted by filter and backdropFilter.
• #[react_morph_filter] + add_react_morph_filter names land in BevyMorphFilters and are accepted by morphFilter only.

Using a name from the wrong family is a type error in TSX. At runtime the entry is skipped with a filterParams or backdropFilterParams warning in a chain, or snaps with a morphFilterParams warning in morphFilter.

#Transitions and animated params

Custom filters take part in filter transitions and { animated } param bindings like the built-ins, with two differences:

• A custom filter has no identity value. When a transition adds or removes a custom entry, the chains swap at the halfway point instead of fading. Keep the entry in the base style with a no-op param value (strength: 0 above) when it should fade in and out.
• { animated } bindings drive f32, Length, Angle and FilterColor params. Vector and array params cannot be bound; the binding is ignored with a filterBinding warning (backdropFilterBinding, morphFilterBinding on those styles).

#Multi-pass filters

#[react_filter] always produces a single pass. For several passes, or an outset computed from the params, implement the ReactFilter trait from bevy_react::filters by hand on a struct deriving serde::Deserialize and ts_rs::TS. Its resolve returns one ResolvedFilterPass per pass, each with its own shader and packed params, and its outset receives the decoded params. Each pass's sample_source reads the previous pass's output, and sample_capture still reads the node's unfiltered capture. The built-in blur (two passes) and bloom are complete implementations. Register it with add_react_filter like any other filter.

#Precompiling shaders

A filter's GPU pipeline compiles in the background the first time it is used, and the node draws nothing until it is ready. By default every registered filter and morph is compiled at startup instead, so first use is instant. precompile_filters narrows that per group: builtins (everything bevy-react ships, morphs included), filters (your add_react_filter filters) and morphs (your add_react_morph_filter morphs), each All (the default), Names(..) or Off:

use bevy_react::{FilterSelection, PrecompileFilters};

app.add_plugins(ReactPlugins.set(
    ReactUiPlugin::default().precompile_filters(PrecompileFilters {
        morphs: FilterSelection::Names(vec!["windowslice".into()]),
        ..default()
    }),
));

A name that is unknown or belongs to another group is skipped with a precompileFilters warning at startup. A hand-written multi-pass filter whose params do not all have defaults precompiles its first shader only.

#Limits

• A shader that fails to compile makes the filtered node invisible until it is fixed. The error is logged to the terminal, naming the layer.
• At most 8 param vec4s per pass (6 for a morph).
• The outset argument is a constant; a param-dependent outset needs a hand-written ReactFilter.
• A time = true filter inside another composited layer (an ancestor with a filter, transform3d, opacity on a node with children, or cache) keeps animating in its own layer but appears frozen, because the enclosing layer reuses its cached capture. Set cache: "never" on the enclosing layer (see Layers).
• Custom filters cannot fade in or out through an identity value (see above), and vector params cannot be animated.

See the filter reference for the built-ins' params, and filter, backdropFilter and morphFilter in the style reference. Filters on a backdrop receive an opaque source; see Backdrop filters.
