<portal>

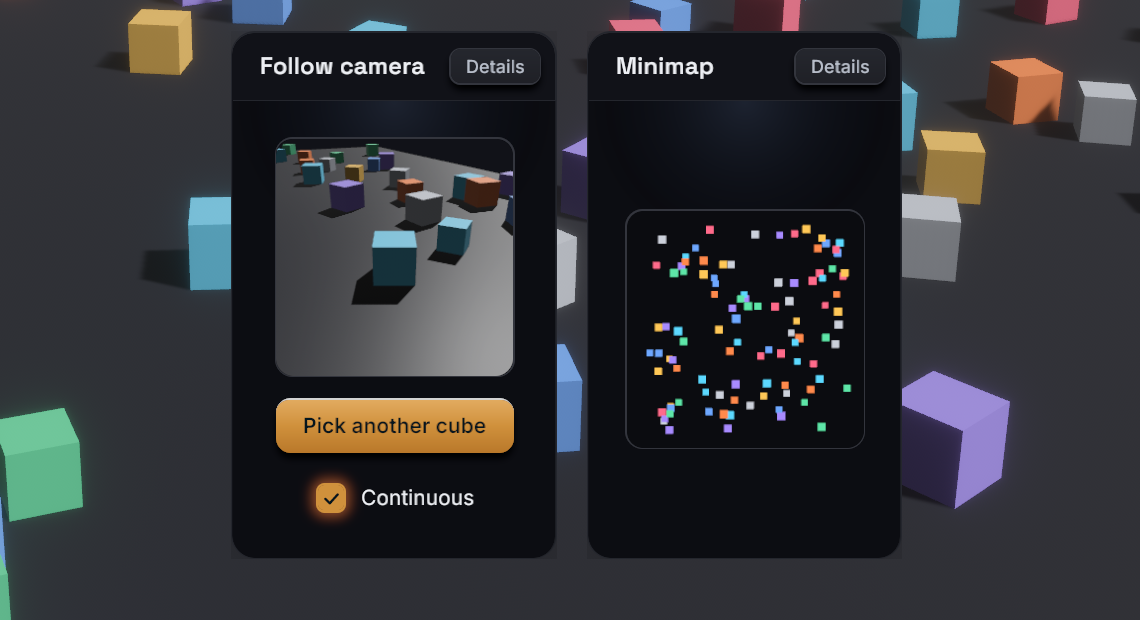

<portal> shows a named render target inside the UI: usually the output of a Bevy camera that renders into a texture, for a minimap, a picture-in-picture view or a 3D item preview. It is a styled node like <node>, whose image is the target's texture stretched over the node. Your app owns the cameras and registers each target under a name in the RenderTargets resource. React displays a target by that name.

#Usage

<portal target="minimap" style={{ width: 160, height: 160 }} />

use bevy::prelude::*;
use bevy_react::{PortalCamera, RenderTargetSpec, RenderTargets};

fn setup(
    mut commands: Commands,
    mut targets: ResMut<RenderTargets>,
    mut images: ResMut<Assets<Image>>,
) {
    let minimap = targets.create(
        &mut images,
        "minimap",
        RenderTargetSpec::default(),
    );
    commands.spawn((
        Camera3d::default(),
        Transform::from_xyz(0.0, 30.0, 0.0)
            .looking_at(Vec3::ZERO, Vec3::NEG_Z),
        minimap.camera_target(),
        PortalCamera("minimap".into()),
    ));
}

<portal> comes from the portal cargo feature, which is on by default and adds PortalPlugin to ReactPlugins. Without it, a <portal> mounts as a plain node and reports a featureMissing warning (see Cargo features). The RenderTargets registry is part of the core and always available.

#Render targets

RenderTargets::create(&mut images, name, spec) allocates a texture and registers it under name. It returns a RenderTarget whose camera_target() is the Bevy RenderTarget component that points a camera at the texture. Creating an existing name again replaces it.

• Tag the camera with PortalCamera(name) so bevy-react decides when it renders (see "Render modes"). An untagged camera renders every frame.
• The name is the only link between the two sides. Use a constant both sides know, or send it to React with an event (see Bevy to React).
• A <portal> whose target doesn't exist yet is transparent, and shows the texture as soon as the target is created. Changing target switches textures.
• remove(name) drops a target: its portals turn transparent again. Despawn the camera yourself.
• register(name, handle) registers an Image you already have (generated or loaded) under a name. It is static: nothing renders into it or resizes it.
• get(name) returns a target's texture handle.

Use RenderLayers on the camera and on what it should see to give a portal its own scene, as a minimap camera drawing flat markers does.

#Target options

RenderTargetSpec configures a target:

• Resolution::Auto sizes the texture to the portal's laid-out size in physical pixels, rounded up to a multiple of 16, so the output is crisp and the camera has the portal's aspect ratio. It assumes one portal per target: with several, the last one bound decides the size.
• Resolution::Fixed(size) keeps one size whatever the layout, for a target shown in several places. The texture stretches to each portal's box.
• Both are capped at 2048 pixels per side.
• Use an HDR format such as Rgba16Float when the camera needs HDR, for example for bloom.

#Render modes

• RenderMode::Live: the camera renders every frame while at least one portal showing the target is visible. A portal that is unmounted, display: "none" or scrolled entirely out of its clipping ancestor doesn't count, so a target nobody sees costs nothing. A portal that becomes visible shows a fresh frame at once.
• RenderMode::Snapshot: the camera renders once when the target is created, when you call invalidate(name), when an Auto target resizes, and when its mode changes, then stops. The texture keeps the last frame: cheap for static thumbnails. A snapshot renders even while no portal shows it, so it is ready when one does.

set_mode(name, mode) switches at runtime. Going from Live to Snapshot renders one last frame, then freezes. For example, a React button can pause a preview through a message:

import { useState } from "react";
import { bevy } from "./bevy";

function PreviewToggle() {
  const [live, setLive] = useState(true);
  const toggle = () => {
    setLive(!live);
    bevy.preview.setLive(!live);
  };
  return (
    <button onClick={toggle}>
      <text>{live ? "Pause preview" : "Resume preview"}</text>
    </button>
  );
}

use bevy::prelude::*;
use bevy_react::prelude::*;
use bevy_react::{RenderMode, RenderTargets};

#[react_message(name = "preview.setLive")]
struct SetPreviewLive(bool);

fn on_set_preview_live(
    ev: On<SetPreviewLive>,
    mut targets: ResMut<RenderTargets>,
) {
    let mode = if ev.event().0 {
        RenderMode::Live
    } else {
        RenderMode::Snapshot
    };
    targets.set_mode("preview", mode);
}

// app.add_react_handler(on_set_preview_live);

#Styles and events

• <portal> takes everything <node> does: style, hoverStyle, pressStyle, focusStyle, pointer handlers, onWheel and the scroll props.
• It has no intrinsic size: give it a width and a height.
• Pointer events hit the portal's box like any node; they don't reach the scene the camera sees.
• backgroundColor shows through transparent pixels of the texture, such as a camera clear color with alpha. backgroundImage is ignored with a styleIgnored warning.
• imageRendering modes other than "auto" are not available on a portal and report an imageRendering warning.
• A live portal inside a composited layer (an ancestor with a filter, backdropFilter, transform3d, morphFilter or cache, or opacity on a node with children) freezes on the layer's cached frame: the layer can't see the camera's writes. Set cache: "never" on the node that creates the layer so it re-captures every frame.

A backgroundImage with a { texture } source shows a registered target as a node's background instead. It suits static textures registered with register: see Background images.

#Limits

• Each live target is a full extra camera render per frame while it is visible.
• Only cameras tagged PortalCamera are switched on and off.
• Auto resolution assumes one portal per target.
• Textures are capped at 2048 pixels per side, so very large portals render at a lower resolution.

See <portal> in the element reference.
